Finance
Regulated records
Designed for records protection for bodies such as the Financial Industry Regulatory Authority and the Exchange Commission.
Write Once. Trust Forever.

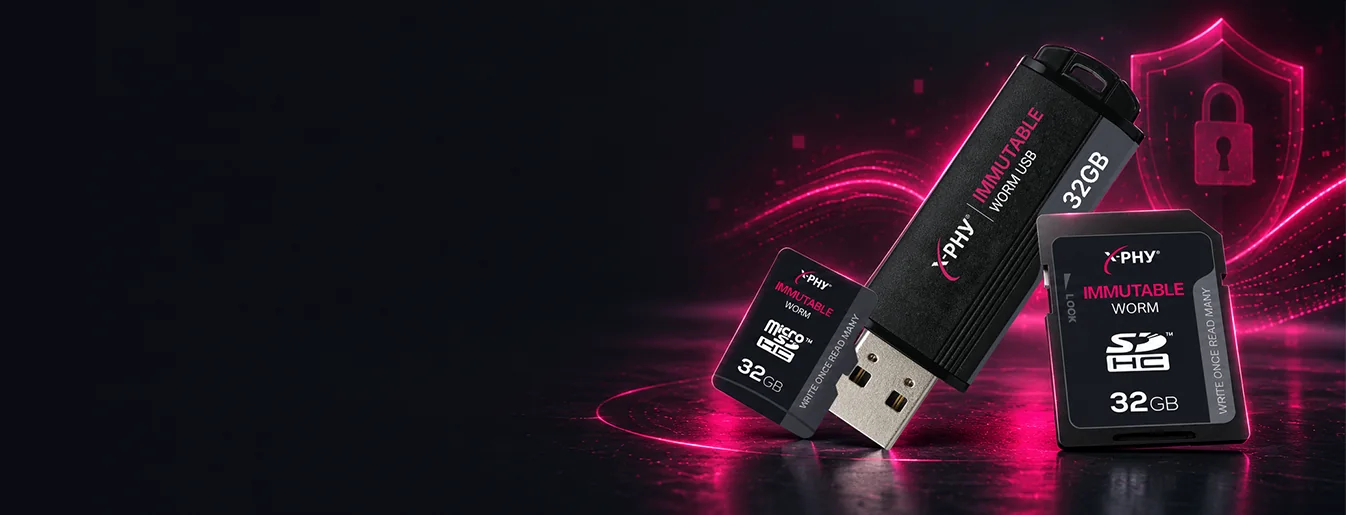

X-PHYIMMUTABLE SERIES
Write Once Read Many • microSD • SD • USB
X-PHY Immutable is WORM mode by default. The device changes to write protect mode if an illegal action is performed — delete file/directory, rename file/directory, change existing data, overwrite file data or disk format — preventing data from being erased, modified or overridden.
Records Changed After They Were Written
Problem
On conventional storage, existing data can be changed, overwritten or renamed by anyone with access to the host.
Accidental Deletion or Disk Format
Problem
A deleted file or a formatted disk removes the only stored copy of a record, and routine handling makes that a matter of time.
Data Overwritten by Malicious Software
Problem
Software that can overwrite file data on writable media can destroy the stored record along with the working copy.
Host-Level Erase Commands
Problem
Standard cards accept Erase, Lock and Unlock commands from the host, leaving stored data reachable from the connected system.
Records Protection Obligations
Problem
Records held for bodies such as the Financial Industry Regulatory Authority and the Exchange Commission are expected to stay in the form in which they were recorded.

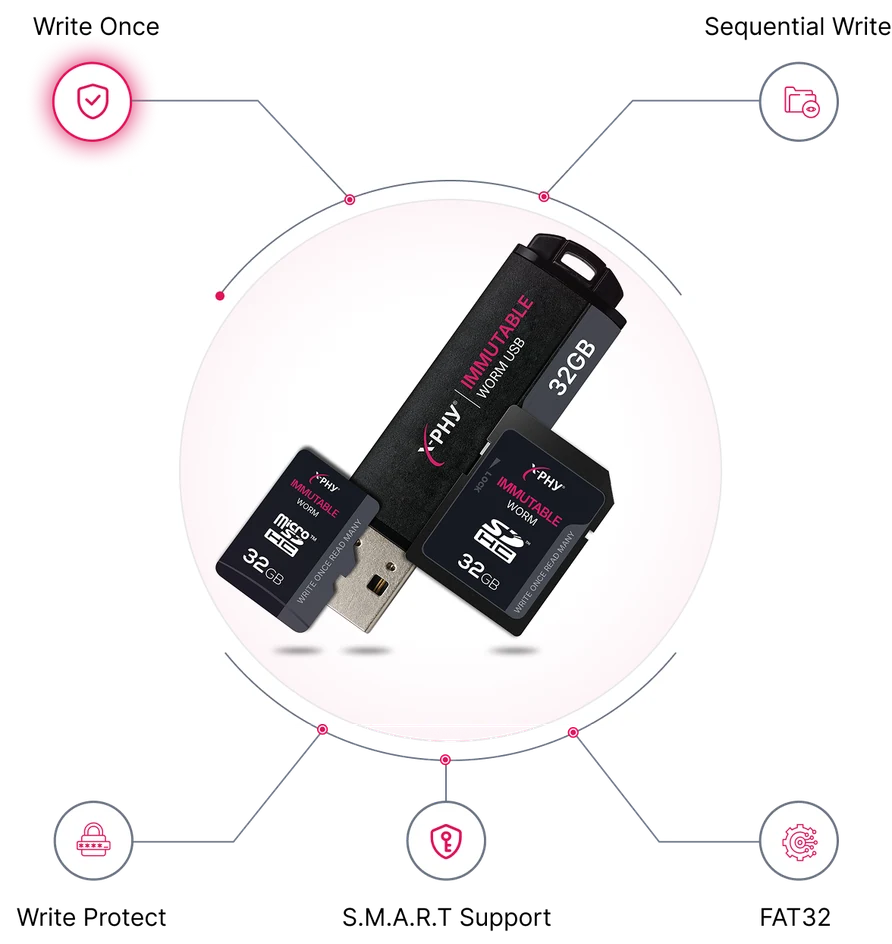

Key Advantages
Why X-PHY IMMUTABLE?
Hardware-Based Write Once Read Many
WORM Mode by Default
The device is WORM mode by default, and files are written one by one sequentially to available storage.
Automatic Write Protection
The device changes to write protect mode if the user performs an illegal action such as deleting or renaming a file or directory, changing existing data, overwriting file data or formatting the disk.
No Erase, Lock or Unlock Commands
X-PHY Immutable SD and microSD do not support Erase, Lock or Unlock SD commands.
Data Integrity Management
Auto read refreshment, read disturbance management, adaptive wear levelling and enhanced error correction keep recorded data readable over time.
Industrial-Grade Reliability
MTBF of more than 3,000,000 hours, S.M.A.R.T. function support and management of sudden power fails, with Diamond grade rated for −40°C to 85°C operation.
Security Architecture
IMMUTABLE Storage Architecture
Hardware-enforced layers working together so a written record cannot be erased, modified or overridden.
WORM Controller
Sequential Write
Write-Protect Trigger
S.M.A.R.T. Monitoring
Power-Fail ManagementHow It Works
Write once, read many — enforced by the device.
The recording journey is reduced to four understandable steps, while the full technical workflow — including the change-attempt decision and both outcomes — remains available below.
-
01Connect to Host Device
Insert the X-PHY Immutable SD, microSD or USB into the host device.
-
02
WORM Mode Active
The device operates in WORM mode by default.
-
03
Record and Read
Record new files normally to available storage and read previously recorded data whenever required.
-
04
Write Protection Activates
If an existing record is deleted, renamed, modified, overwritten or formatted, the device switches to write-protect mode and recorded data stays protected.

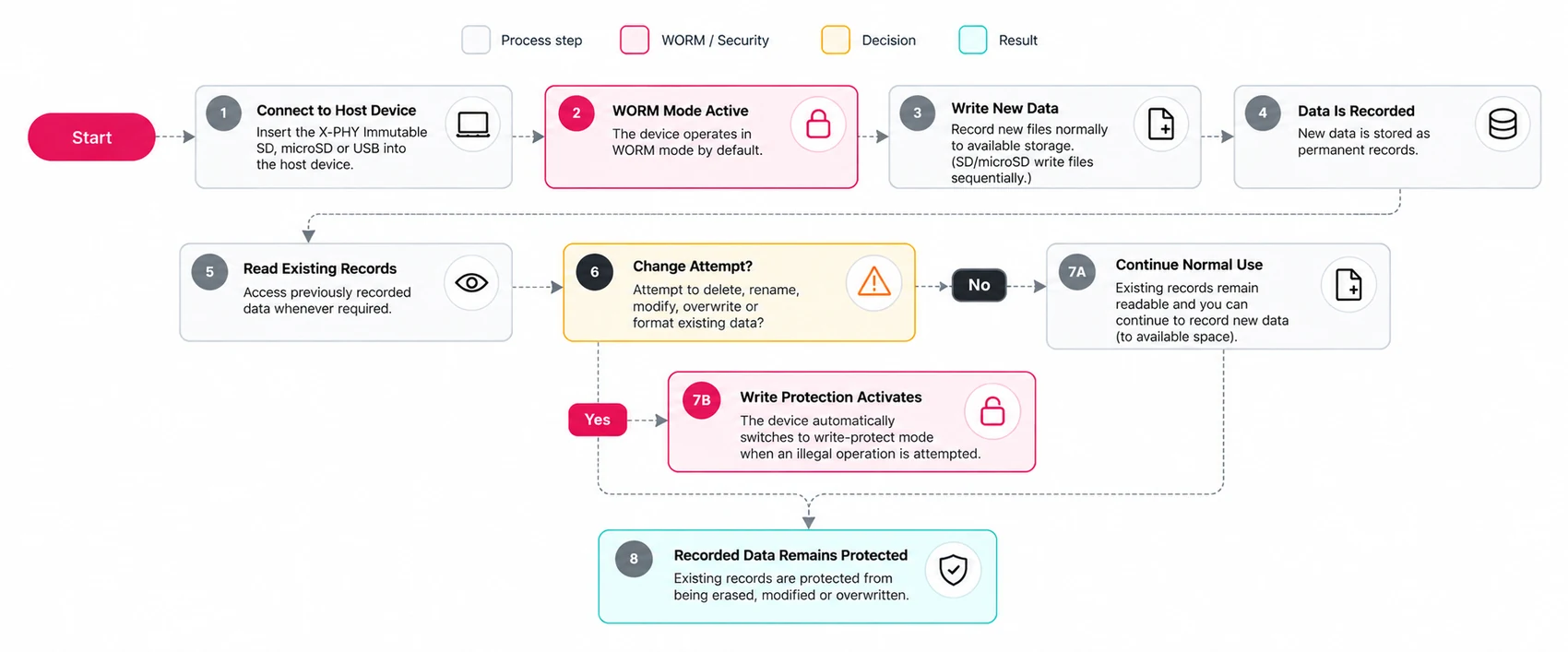

View Detailed Workflow
Product Series

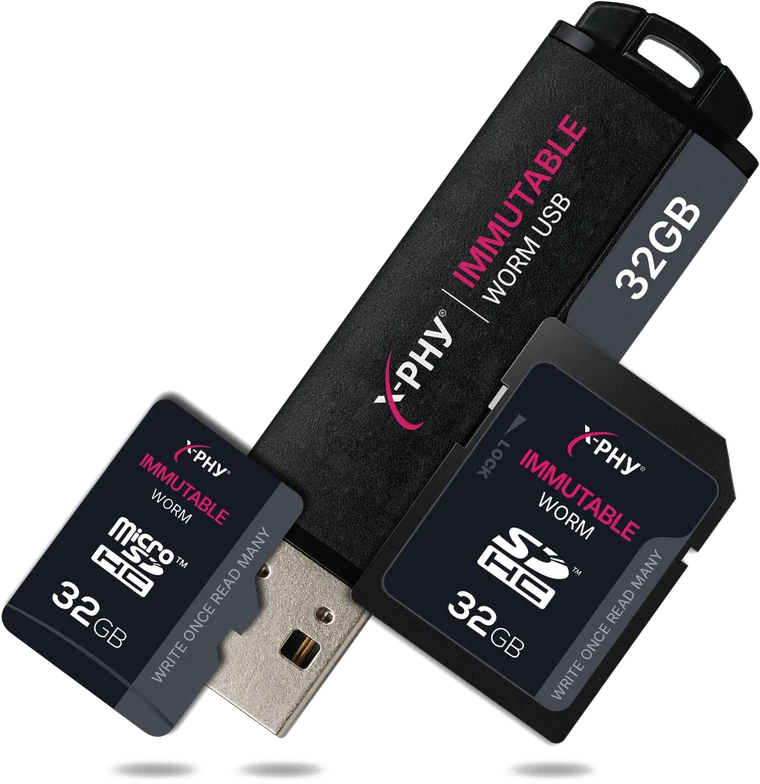

IMMUTABLE in three form factors.
X-PHY Immutable is available as microSD, SD and USB. Every form factor is WORM mode by default, supports FAT32 and carries S.M.A.R.T. function support and adaptive wear levelling.
Immutable microSD
8GB to 32GB · MLC · SD System Specification 6.1 · up to 75 MB/s read and 68 MB/s write · 15 × 11 × 1 mm.
XWMSW9-AR / -BR / -CR
Immutable SD
8GB to 32GB · MLC · SD System Specification 6.1 · up to 80 MB/s read and 45 MB/s write · 32 × 24 × 2.1 mm.
XWSDW9-AR / -BR / -CR
Immutable USB
2GB to 32GB · MLC · USB 2.0 Type A, High-speed 480Mbps · 33 MB/s read and 12 MB/s write · 54.7 × 17 × 8 mm.
Contact X-PHY for part numbers
Use Case
Where X-PHY IMMUTABLE Delivers Value
Legal & Investigation
Captured evidence
Recorded files cannot be renamed, overwritten or deleted through the host, so the stored copy stays as it was written.
Healthcare
Retained patient data
Auto read refreshment and read disturbance management keep recorded data readable for as long as it must be retained.
Government & Defence
Field records
Diamond grade operates from −40°C to 85°C, with 1500G shock resistance and management of sudden power fails.
Suited to organisations that must keep recorded information in a form that cannot be erased, modified or overridden.
X-PHY Immutable Specifications
X-PHY
IMMUTABLE SD
Write Once. Preserve Critical Records.
Standard SD
Form Factor
8 GB to 32 GB
Capacity
True WORM
Drive
up to 80 MB/s
Read Speed
up to 45 MB/s
Write Speed
3,000,000+
hours
X-PHY
IMMUTABLE MICROSD
Small Form. Immutable Records.
microSD
Form Factor
8 GB to 32 GB
Capacity
True WORM
Drive
up to 75 MB/s
Read Speed
up to 68 MB/s
Write Speed
3,000,000+
hours
X-PHY
IMMUTABLE USB
Plug In. Write Once. Protect Records.
USB-A 2.0
Form Factor
2 GB to 32 GB
Capacity
True WORM
Drive
up to 33 MB/s
Read Speed
up to 12 MB/s
Write Speed
3,000,000+
hours
Immutable Series
Choose Your X-PHY IMMUTABLE Capacity
X-PHY Immutable records data in WORM mode so that written files cannot be erased, modified or overridden through the host device.
Form Factor
Capacity
Immutable Series
Keep Recorded Data Intactwith X-PHY IMMUTABLE
WORM mode by default across microSD, SD and USB, with automatic write protection when an illegal operation is attempted.
