Invisible Data Security

X-PHYStealth Pro microSD

Masked Storage • Password Authentication • Unauthorized Access Prevention

X-PHY Stealth Pro microSD masks the entire card to prevent unauthorized access. Your data stays hidden, protected by data scrambling and hashing, until you select Disable Mask and enter the correct password in the X-PHY Stealth Application.

Hand reaching toward a microSD card behind a digital security shield
Unauthorized Data Access

Problem

Anyone with physical access to a conventional microSD card can potentially view/read sensitive files without authorization.

Data Exposure in Transit

Problem

Files carried between sites on removable media can be read by anyone who intercepts the card along the way.

Lost or Stolen Devices

Problem

A misplaced or stolen card exposes every file on it to whoever finds it.

Accidental Data Disclosure

Problem

Sensitive files can be opened or copied when a card is inserted into the wrong device or shared by mistake.

Weak USB Security

Problem

Standard card readers and USB adapters mount storage automatically, with no check on who is accessing it.

Key Advantages

Why X-PHY Stealth Pro?

Firmware-enforced mask

Password-Based Access Control

Configure a password using the X-PHY Stealth Application. Protected data can only be accessed with the correct password.

Controlled Data Visibility

Prevent protected storage from behaving like an ordinary always-visible card.

Data Scrambling and Hashing

Equipped with data scrambling and hashing algorithms that keep files protected at all times.

Advanced Data Protection

Your data stays hidden, protected by data scrambling and hashing, until you select Disable Mask and enter the correct password in the X-PHY Stealth Application.

Industrial-Grade Reliability

microSD form factor and operational specifications suited for demanding environments.

Stealth Pro microSD with Password, Mask Mode, X-PHY Stealth Application, Data Protection and Scrambling & Hashing

Security Architecture

Concealed Storage Architecture

Firmware-enforced masking and password control working together to safeguard confidential data.

Hidden Drive
Password Authentication
Firmware-Enforced Mask
X-PHY Stealth Application
Data Protection

How It Works

Secure access without a complicated user experience.

The primary user journey is reduced to four understandable steps, while the full technical workflow remains available below.

Stealth Pro four-step cycle: 1 Set up — open the X-PHY Stealth Application, click Enable Mask and set a password, then eject and reinsert the card; 2 Record — click Temporarily Disable and enter your password, then your device can record for one insertion; 3 Hidden — the card masks again as soon as it is ejected, so your data stays hidden; 4 Read files — click Disable Mask and enter your password to open files on any computer, then click Enable Mask to protect it again

Never format a masked card. A masked card shows as unformatted and Windows may offer to format it. Formatting wipes the data stored on the card.

View Detailed Workflow

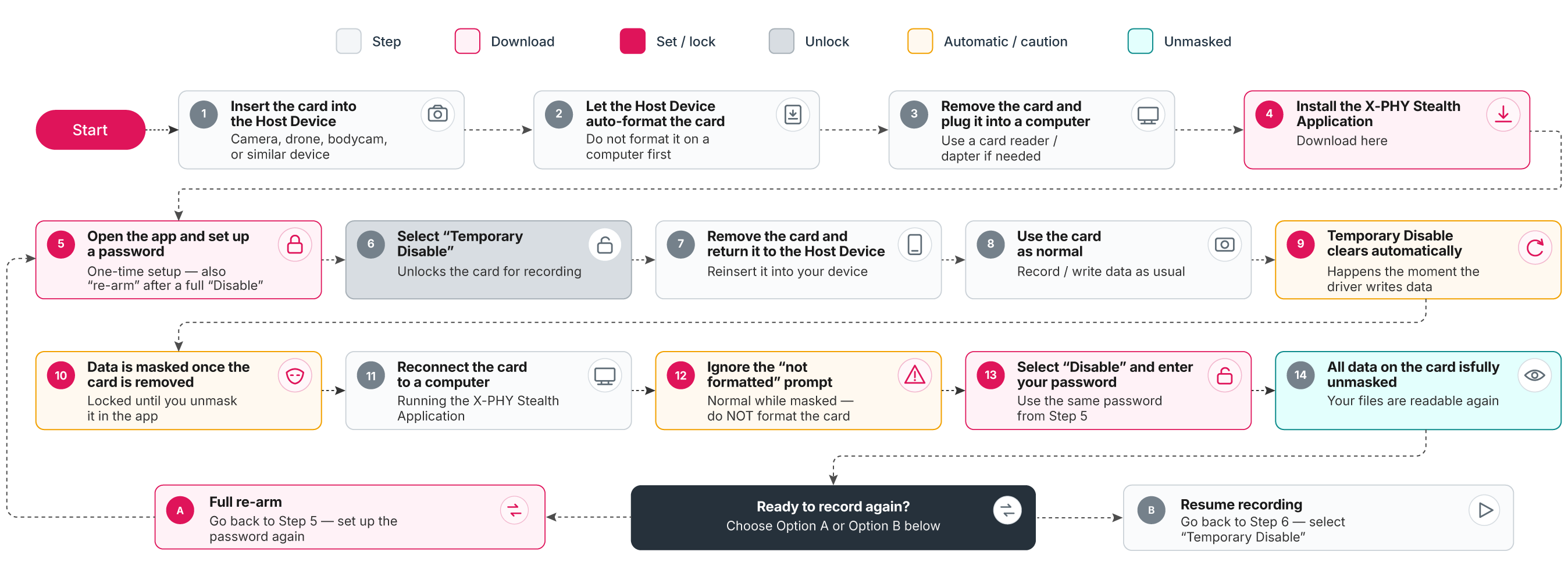

Detailed Stealth Pro workflow: insert the card into your PC, open the X-PHY Stealth Application and check the status shown. If Data at Risk: Enable Mask, set a new password of 8+ characters, confirm, then eject and reinsert the card to reach Data Protected. From Data Protected, to record with a device: click Temporarily Disable, enter password and confirm, read and write on this PC, eject and reinsert the card for the one-time pass, read and write as normal (masks again once ejected), repeat before each pass. To read files on your PC: click Disable Mask, enter password and confirm, status becomes Data at Risk, open files in File Explorer on any computer, then protect again with Enable Mask and a new password.

Core Capabilities

Protection built around controlled visibility.

The experience is designed around a small set of security behaviors that are easy to understand and deploy.

Mask Mode

Keep protected storage concealed until authorized access is intentionally provided.

Password Access

Use password-based authentication to control when protected storage becomes visible.

Host-Independent Access

Password-controlled access through the X-PHY Stealth Application. After Disable Mask, the card can be read on any computer.

Data Protection

Reduce unwanted exposure of sensitive data carried on removable media.

Controlled Visibility

Prevent protected storage from behaving like an ordinary always-visible card.

Industrial Reliability

microSD form factor and operational specifications suited for demanding environments.

Use Case

Where X-PHY Stealth Pro Delivers Value

Soldiers operating a drone and rugged tablet in the field

Military & Defense

Field Operation

Carries mission data through demanding environments across a −25°C to 85°C operating range (storage −40°C to 85°C).

Lab researcher pipetting samples beside a data workstation

Healthcare & Labs

Patient records

Keeps medical records readable only to clinicians with the password, supporting confidentiality obligations.

Police officer wearing a body-worn camera on a city street

Enforcement

Body-worn camera footage

Keeps evidence footage hidden once the card is ejected, so a lost card reveals nothing without the password.

In-car dashcam recording a city street at night

Surveillance

Dashcam recordings

Stops anyone who removes the card from viewing or copying in-vehicle footage without the password.

Ideal for organizations handling confidential, regulated, and mission-critical information requiring controlled access and secure storage.

microSD

Form Factor

SD 6.1

Standard

3D TLC

Flash Type

64GB / 128GB

Capacity

XSMS10-EG / XSMS10-FG

Part Number (64GB / 128GB)

15 × 11 × 1 mm

Dimensions

85 MB/s

Max. Read

Up to 25 / 48 MB/s

Max. Write (64GB / 128GB)

−25°C ~ 85°C

Operating Temperature

−40°C ~ 85°C

Storage Temperature

More than 3,000,000 hours

MTBF

1500G

Shock Resistance

20G

Vibration Resistance

Up to 1.8 m

Drop Resistance (free fall)

Windows only

Software Compatibility

Normal Mode

Default Mode

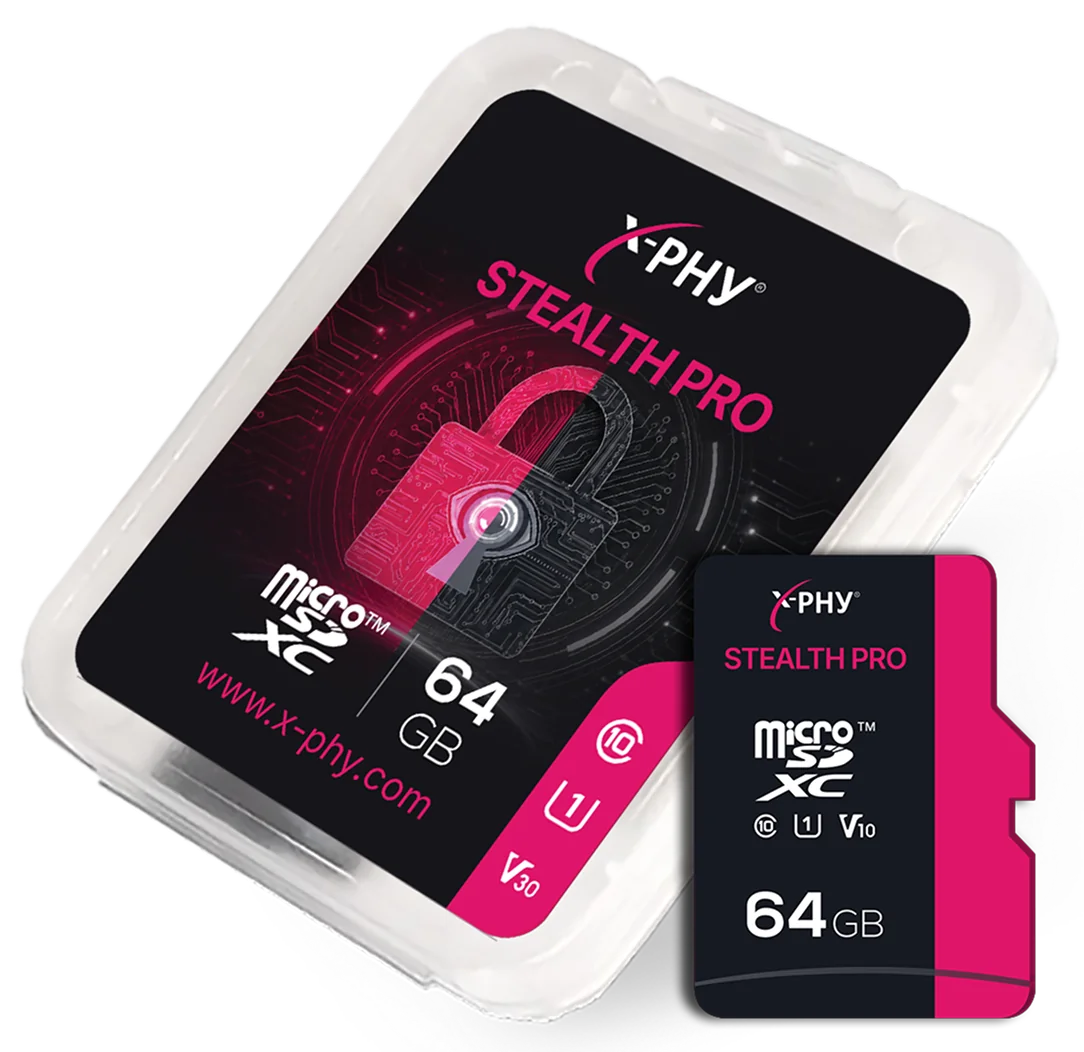

X-PHY Stealth Pro microSD card with retail case

Stealth Pro microSD

Choose Your X-PHY Stealth Pro Capacity

X-PHY Stealth Pro microSD Card provides concealed, password-controlled storage for protecting confidential data beyond the network perimeter.

Capacity

Stealth Pro microSD

Protect Sensitive Data withX-PHY Stealth Pro microSD

X-PHY Stealth Pro microSD Card provides concealed, password-controlled storage for protecting confidential data beyond the network perimeter.
